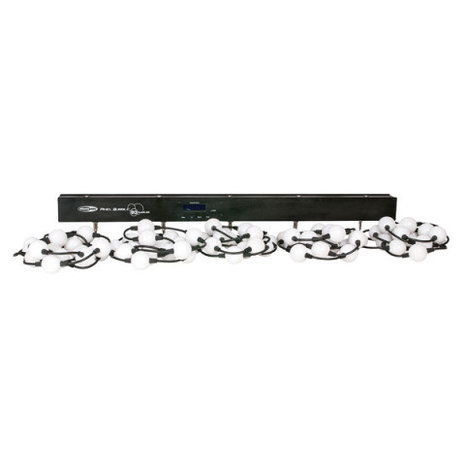

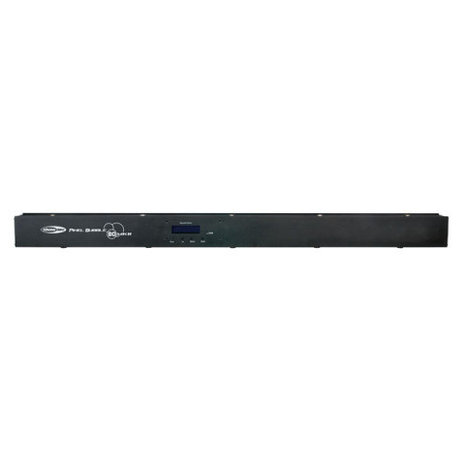

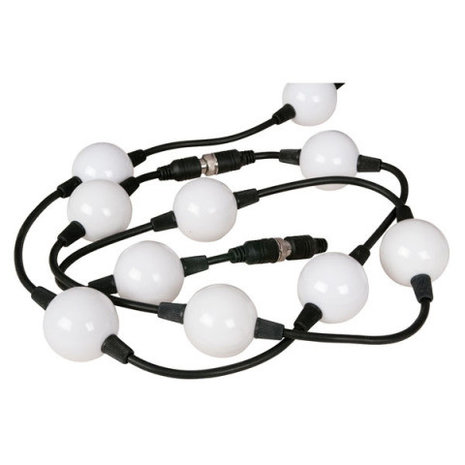

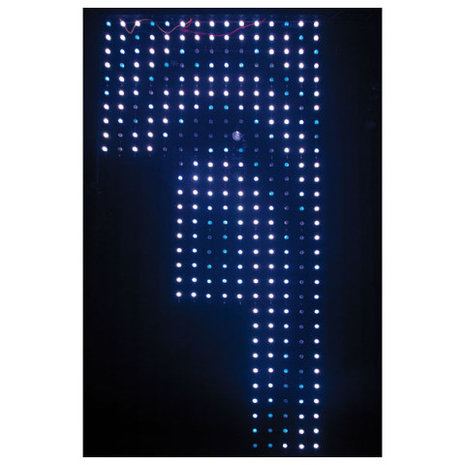

The Pixel Bubble 80 MKII is a visual effect created by a matrix of 50mm RGB balls. It has a lot of useful improvements towards the first version. The length of the strings of pixel bubble 80 MKII can be adjusted with 1 meter from 2 till 6 meters. The standard set is delivered with 15 pcs of 1m strings which gives you 5 rows of 3 meter. Another big improvement is control protocols, besides the standard DMX protocol the pixcel bubble MKII can also be controlled with pixel map software by Artnet or Klingnet. A user-friendly menu will give you the possibility to set all network parameters, or select the correct DMX channel setting and address. It is also loaded with vivid patterns which can be selected in the basic DMX mode if you like to use it without any kind of preparation. The built-in Ethernet switch makes it possible to easily daisy chain your data network, external switches or routers are no longer needed. With the pixelbubble 80 MKII you can give your lightshow a creative visual boost.
Specifications
Light source: 5050SMD RGB Led
Pixel Pitch: 200mm
Included strings: 15 (W5/L3)
String length: 1m
Max length: 6m
Bubbles / string: 5
Beam angle: 360°
Refresh rate: 444Hz
Operation: DMX, Klingnet, Artnet, Built-in programs
DMX channels: 12, 150, 225, 300, 375, 425
Power Supply: 100~240VAC...50/60Hz
Power Consumption: 90W max @ FO

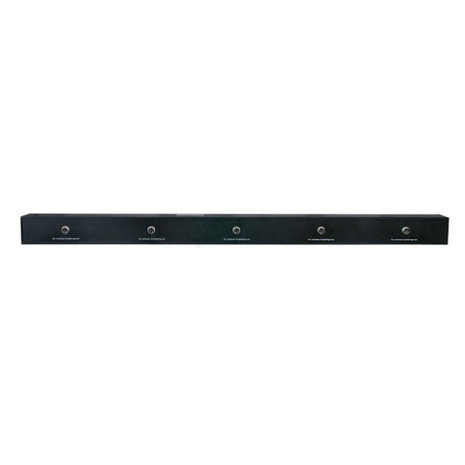

Mounting: top mounting points 3x M8 and 2x M10

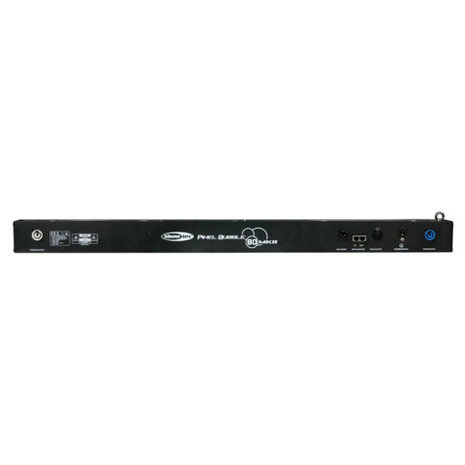

Bar Size: 65 x 72 x 1050mm
Bubble Size: 50mm
Operating temp: -5° - +40°
Cooling: Convection
Power Connections: Blue/White Power connector
Data Connection: RJ-45 in/out built-in switch
Environment: IP-20
Weight: 2,5Kg
